Understanding Wavelets
Victor M. Tuset & Antoni Lombarte
2025-11-27
Source:vignettes/Knowing_Wavelets.Rmd
Knowing_Wavelets.RmdAbout this tutorial
This tutorial describes the basic concepts underlying the morphological interpretation of wavelet functions.
Choosing coordinates

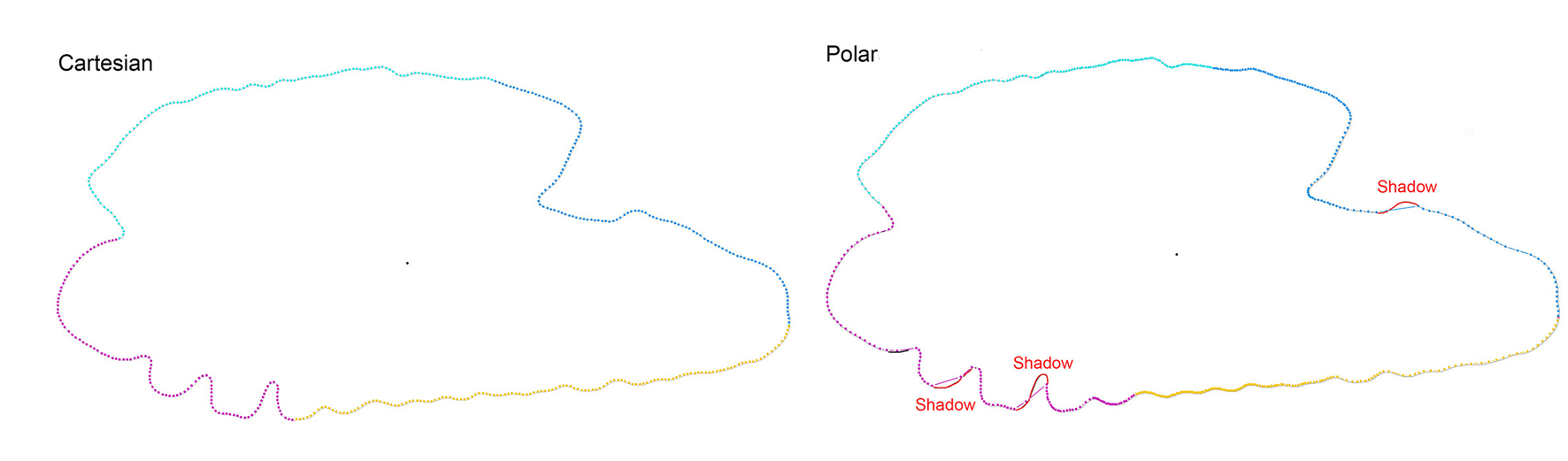

The package extracts the contour in both Cartesian and polar coordinates. The selection of the coordinate system depends on the degree of contour irregularity: the greater the irregularity, the higher the probability of misrepresentation (‘shadowing’) when using polar coordinates.
| Coordinates | Advantages | Disadvantages |
|---|---|---|
| Cartesian | Irregular shapes with acute angles | Points are not strictly homologous |
| Polar | Perfect for round shapes or few irregularity | Points are homologous |
Towards wavelet representation
The package extracts 512 equidistant coordinates from each orthogonal projection of the otolith. These coordinates enable the calculation of the normalized distance from the centroid to the chosen initial point, from which the wavelet transform is computed at multiple scales. Lower scales (1st) capture finest contour irregularities, whereas higher scales (9th) smooth the outline (Parisi-Baradad et al., 2015; Vasconcelos et al., 2025).
Visualizing coordinates and distances allows for the reconstruction of contours and the identification of irregular shapes. Users have access to all scales, with the choice of scale determined by the specific study and the structure of the otolith margins. We recommend the following:
- Species identification: 5th level,
- Stock separation: 4th level,
- Phenotype discrimination: 2nd to 4th levels,
- Organism classification: 6th to 8th levels.
Morphological interpretation of wavelets

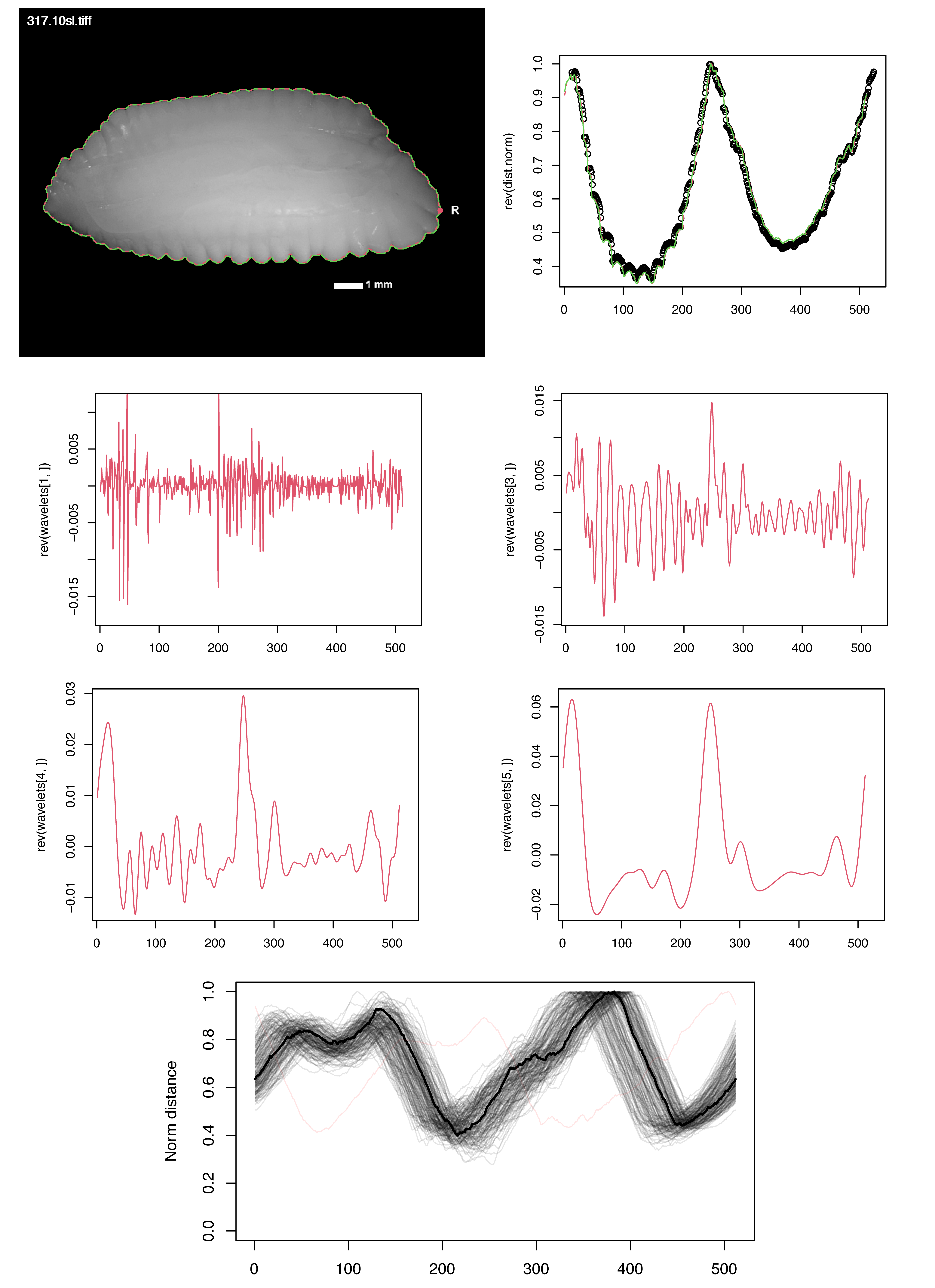

The wavelet function is obtained in a counter-clockwise direction. The package provides two types of graphics in the output R:
- Image type 1: Wavelet signal.
- Image type 2: Contour points and reconstructed outline.

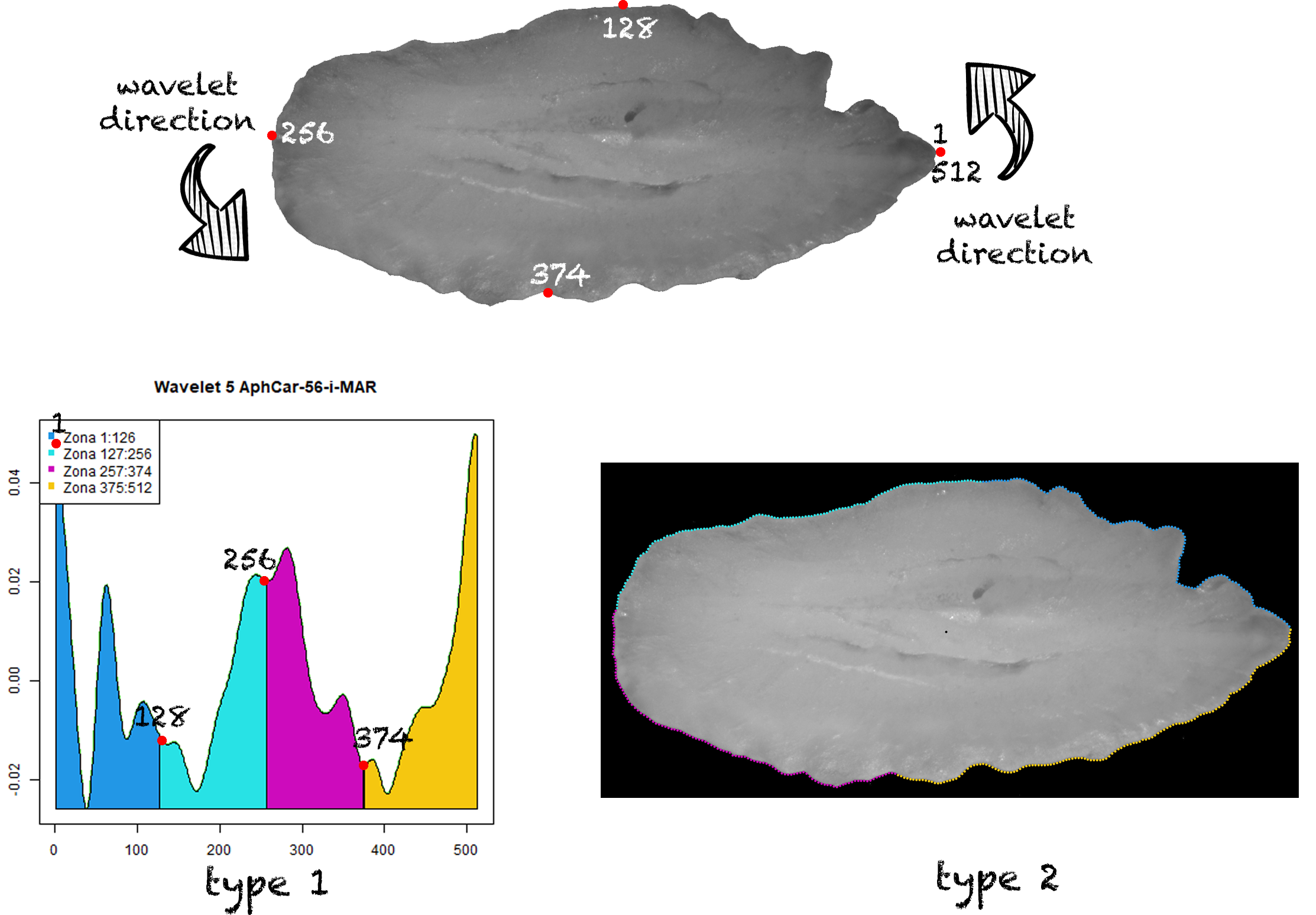

Check these graphics for possible issues with images or backgrounds. Images are divided into four colour-coded sections (1–128, 129–256, 257–374, 375–512) to aid morphological interpretation.

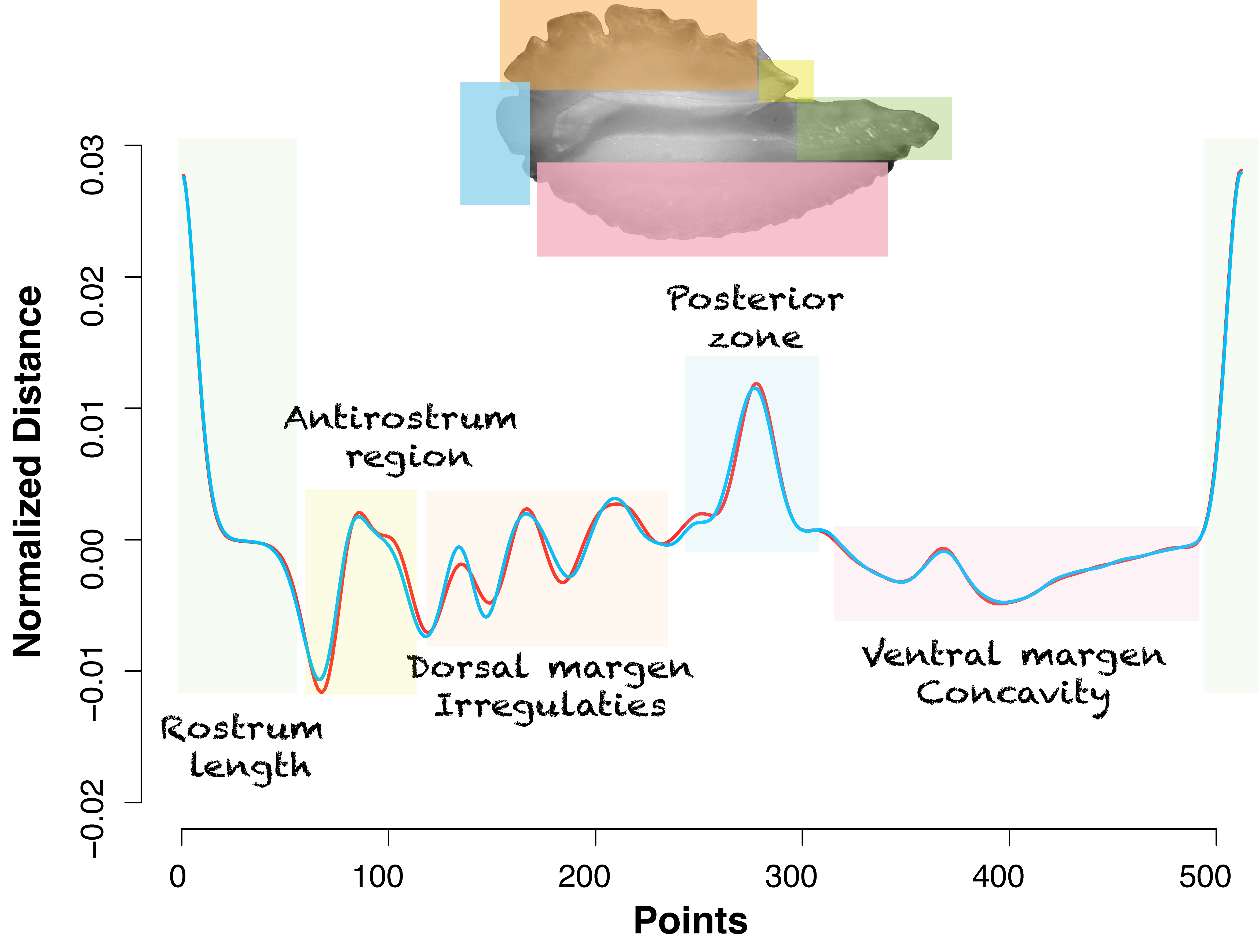

By applying the wavelet function to the otolith contour, users can readily reconstruct the otolith morphology.
